File containing ndarray aka tensors metadata. This file can be extended to support multiple backends. More...

#include <stdint.h>
#include <stdarg.h>

Include dependency graph for ndarray.h:

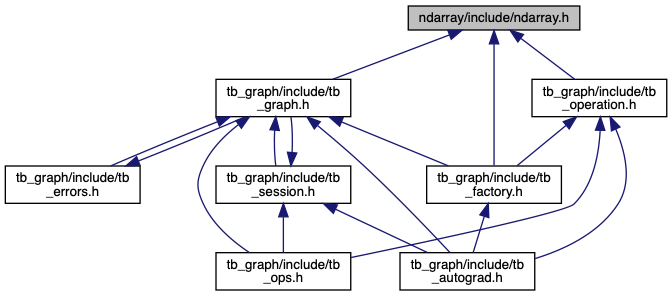

This graph shows which files directly or indirectly include this file:

Macros
#define	__FUNCTION_NAME__ __func__

#define	TB_ASSERT_LOG

#define	ASSERT(c, msg, ...) nda_assert(c, #c, __FUNCTION_NAME__ , msg, ##__VA_ARGS__)

#define	TB_FLOAT 0

#define	TB_DOUBLE 1

#define	TB_TYPE TB_FLOAT

Typedefs
typedef float	tb_float

typedef enum NDArrayLocation	NDArrayLocation

Enumerations
enum	NDArrayLocation { NDA_LOC_HOST_MEM =0, NDA_LOC_DEVICE_MEM =0 }

Functions
void	nda_ShapeStackInit (struct NDShapeStack stack, struct NDShape shape)
	Unline other factory pattern object, the stack is usually allocated on the stack (in contrast to heap) So we do need dynamically allocate it, this function only initializes the values of a fresh allocated stack. More...

uint8_t	nda_ShapeStackCanPop (struct NDShapeStack *stack)
	Checks if a shape stack can still popped further more. More...

uint64_t	nda_ShapeStackPop (struct NDShapeStack *stack)
	Pops the next element in the stack, does not modify the shape but updates the index in the stack. More...

struct NDShape *	nda_newShape (uint64_t rank,...)

struct NDShape *	nda_newShapeFromArray (uint64_t rank, uint64_t *dims)

struct NDShape *	nda_newShapeFromArrayCopy (uint64_t rank, uint64_t *dims)

void	nda_debugShape (struct NDShape *shape)
	Prints tensor shape to stdout. More...

struct NDShape *	nda_copyShape (struct NDShape *shape)
	Creates and Allocates a shape with the same properties of the given one. More...

uint8_t	nda_shapeCanBroadCast (struct NDShape shape1, struct NDShape shape2)
	Verifies if two shapes can be broadcasted Broadcast verifications follows numpy rules: More...

char *	nda_shapeToString (struct NDShape *shape)
	Generate a string representation of the shape, which can be used for debugging or generating errors. More...

void	nda_debugValue (struct NDArray *tensor)
	Prints tensor value to stdout. More...

uint64_t	nda_getTotalSize (struct NDShape *shape)
	Calculate the total number of elements in a tensor shape. More...

struct NDArray *	nda_alloc (struct NDShape *shape)
	Creates an empty zeroed tensor. More...

struct NDArray *	nda_randomNormal (struct NDShape *shape, float mu, float sig)
	Creates an array from a Guassian Distribution. More...

struct NDArray *	nda_linspace (tb_float a, tb_float b, uint64_t n)
	Return evenly spaced numbers over a specified interval. More...

struct NDArray *	nda_ones (struct NDShape *shape)
	Creates an One initialized tensor. More...

struct NDArray *	nda_fill (struct NDShape *shape, tb_float value)
	Creates an array initialized with one value. More...

struct NDArray *	nda_copy (struct NDArray *x)
	copies an existent tensor, memory must be explicitly freed. More...

void	nda_reshape (struct NDArray x, struct NDShape shape)
	reshape an ndarray, old shape is freed. More...

void	nda_free (struct NDArray *array)
	frees an NDArray alongside its shape More...

tb_float	nda_get (struct NDArray array, uint64_t index)
	Returns the value of an array. More...

struct NDArray *	nda_slice (struct NDArray array, uint64_t index)
	Returns a slice of an array. More...

tb_float	nda_vget (struct NDArray array, uint64_t index, struct NDShape *vshape)
	Returns the value of array throughout a virtual shape. The virtual shape has the same size of the original, but padded with ones to match another shape during broadcasting. If an index has a value higher than the padded virtual shape, the index 0 is then used. #deal_with_it. More...

tb_float	nda_get1D (struct NDArray *array, uint64_t index)
	Returns the value of an array through 1d Inde. More...

tb_float	nda_vget1D (struct NDArray *array, uint64_t index)
	Returns the value of array throughout a 1D index. If the index has a value higher than the original size, mod is used. More...

Detailed Description

File containing ndarray aka tensors metadata. This file can be extended to support multiple backends.

File containing ndarray standard backend implementation aka tensors metadata.

Author: Soulaymen Chouri

Date: March 16 2019

Typedef Documentation

◆ NDArrayLocation

typedef enum NDArrayLocation NDArrayLocation

Array location

Enumeration Type Documentation

◆ NDArrayLocation

enum NDArrayLocation

Array location

Enumerator
NDA_LOC_HOST_MEM	Array is located on the host memory (RAM)
NDA_LOC_DEVICE_MEM	Array is located on the device memory (global memory)

Function Documentation

◆ nda_alloc()

struct NDArray* nda_alloc ( struct NDShape * shape )

Creates an empty zeroed tensor.

Parameters

shape initial shape

Returns: 0 initialized tensor

◆ nda_copy()

struct NDArray* nda_copy ( struct NDArray * x )

copies an existent tensor, memory must be explicitly freed.

Parameters

[in] x tensor to copy

Returns: copy of x, must be explicitly freed

◆ nda_copyShape()

struct NDShape* nda_copyShape ( struct NDShape * shape )

Creates and Allocates a shape with the same properties of the given one.

Parameters

shape Shape to copy

Returns: New allocated shape

◆ nda_debugShape()

void nda_debugShape ( struct NDShape * shape )

Prints tensor shape to stdout.

Parameters

[in] shape TensorShape to display

◆ nda_debugValue()

void nda_debugValue ( struct NDArray * tensor )

Prints tensor value to stdout.

Parameters

[in] tensor Tensor to display

◆ nda_fill()

struct NDArray* nda_fill	(	struct NDShape *	shape,
		tb_float	value
	)

Creates an array initialized with one value.

Parameters

shape[in]	initial shape
value[in]	value to initialize the array with

Returns: Array whos elements are initialized by value

◆ nda_free()

void nda_free ( struct NDArray * array )

frees an NDArray alongside its shape

Parameters

[in/out] array data to free

◆ nda_get()

tb_float nda_get	(	struct NDArray *	array,
		uint64_t *	index
	)

Returns the value of an array.

Parameters

[in]	array	NDArray to access
[in]	index	Array of dims of the element, len(index) must be equal to to the rank of the array

Returns: array[index]

◆ nda_get1D()

tb_float nda_get1D	(	struct NDArray *	array,
		uint64_t	index
	)

Returns the value of an array through 1d Inde.

Parameters

[in]	array	NDArray to access
[in]	index	1D index to fetch

Returns: array[index]

◆ nda_getTotalSize()

uint64_t nda_getTotalSize ( struct NDShape * shape )

Calculate the total number of elements in a tensor shape.

Parameters

[in] shape Tensor shape to process

Returns: Total number of elements in the array (Product of dimensions)

◆ nda_linspace()

struct NDArray* nda_linspace	(	tb_float	a,
		tb_float	b,
		uint64_t	n
	)

Return evenly spaced numbers over a specified interval.

Parameters

[in]	a	start element
[in]	b	end element
[in]	n	number of elements

Returns: evenly spaced numbers over the specified interval.

◆ nda_newShape()

struct NDShape* nda_newShape	(	uint64_t	rank,
			...
	)

Creates a new shape from the given elements dimensions

Parameters

[in]	rank	number of dimensions
[in]	...	list of dimensions (variadic parameters)

Returns: new NDShape

◆ nda_newShapeFromArray()

struct NDShape* nda_newShapeFromArray	(	uint64_t	rank,
		uint64_t *	dims
	)

Creates a new shape from the given elements dimensions as array

Parameters

[in]	rank	number of dimensions
[in]	array	of dims, should be dynamically allocated as it will be freed when the shape is destroyed. len(array) must be equal to rank

Returns: new NDShape

◆ nda_newShapeFromArrayCopy()

struct NDShape* nda_newShapeFromArrayCopy	(	uint64_t	rank,
		uint64_t *	dims
	)

Creates a new shape from the given elements dimensions as array

Parameters

[in]	rank	number of dimensions
[in]	array	of dims, this array will be copied and the copy will be assigned to the new shape. len(array) must be equal to rank

Returns: new NDShape

◆ nda_ones()

struct NDArray* nda_ones ( struct NDShape * shape )

Creates an One initialized tensor.

Parameters

shape[in] initial shape

Returns: 1-initialized tensor

◆ nda_randomNormal()

struct NDArray* nda_randomNormal	(	struct NDShape *	shape,
		float	mu,
		float	sig
	)

Creates an array from a Guassian Distribution.

Parameters

	shape	initial shape
[in]	mu	Gussian's Mu parameters
[in]	sig	Guaussian\s Sigma parameter

Returns: randomly initialized array

◆ nda_reshape()

void nda_reshape	(	struct NDArray *	x,
		struct NDShape *	shape
	)

reshape an ndarray, old shape is freed.

Parameters

	[in/out]	x ndarray to reshape
[in]	shape	new shape

◆ nda_shapeCanBroadCast()

uint8_t nda_shapeCanBroadCast	(	struct NDShape *	shape1,
		struct NDShape *	shape2
	)

Verifies if two shapes can be broadcasted Broadcast verifications follows numpy rules:

If the two arrays differ in their number of dimensions, the shape of the one with fewer dimensions is padded with ones on its leading (left) side.
If the shape of the two arrays does not match in any dimension, the array with shape equal to 1 in that dimension is stretched to match the other shape.
If in any dimension the sizes disagree and neither is equal to 1, an error is raised.

Parameters

[in]	shape1	Shape of the first array
[in]	shape2	Shape of the second array

Returns: true if shapes can be broadcasted, false otherwise.

◆ nda_ShapeStackCanPop()

uint8_t nda_ShapeStackCanPop ( struct NDShapeStack * stack )

Checks if a shape stack can still popped further more.

Parameters

[in] stack Stack to check

Returns: Boolean, true if the stack can be popped further more, false otherwise.

◆ nda_ShapeStackInit()

void nda_ShapeStackInit	(	struct NDShapeStack *	stack,
		struct NDShape *	shape
	)

Unline other factory pattern object, the stack is usually allocated on the stack (in contrast to heap) So we do need dynamically allocate it, this function only initializes the values of a fresh allocated stack.

Parameters

	[in/out]	stack Allocated stack to initialize
[in]	shape	Shape to bind to the stack

◆ nda_ShapeStackPop()

uint64_t nda_ShapeStackPop ( struct NDShapeStack * stack )

Pops the next element in the stack, does not modify the shape but updates the index in the stack.

Parameters

[in/out] stack Stack from which to pop the element

Returns: Dimension of the shape in the stack index

◆ nda_shapeToString()

char* nda_shapeToString ( struct NDShape * shape )

Generate a string representation of the shape, which can be used for debugging or generating errors.

Parameters

[in] shape NDShape to process

Returns: string representation of the shape

◆ nda_slice()

struct NDArray* nda_slice	(	struct NDArray *	array,
		uint64_t *	index
	)

Returns a slice of an array.

Parameters

[in]	array	NDArray to access
[in]	index	Array of slices of the elements, must be in the format start_dim_1, end_dim_1, start_dim_2, end_dim_2, ... start_dim_n, end_dim_n

Returns: array[index]

◆ nda_vget()

tb_float nda_vget	(	struct NDArray *	array,
		uint64_t *	index,
		struct NDShape *	vshape
	)

Returns the value of array throughout a virtual shape. The virtual shape has the same size of the original, but padded with ones to match another shape during broadcasting. If an index has a value higher than the padded virtual shape, the index 0 is then used. #deal_with_it.

Parameters

[in]	array	NDArray to access
[in]	index	Array of dims of the element, len(index) must be equal to to the rank of the array
[in]	vshape	Virtual padded shape

Returns: array[indexvshape]

◆ nda_vget1D()

tb_float nda_vget1D	(	struct NDArray *	array,
		uint64_t	index
	)

Returns the value of array throughout a 1D index. If the index has a value higher than the original size, mod is used.

Parameters

[in]	array	NDArray to access
[in]	index	1D index to fetch

Returns: array[indexvshape]
